Cloning Puzzle

Need some help?

Close

Clues and the answer will become available during the puzzle.


Clue 1

Unlock 15 seconds will be added to your timeAvailable in 150 seconds

Clue 2

Unlock 30 seconds will be added to your timeAvailable in 300 seconds

Answer

Unlock 60 seconds will be added to your timeAvailable in 450 seconds

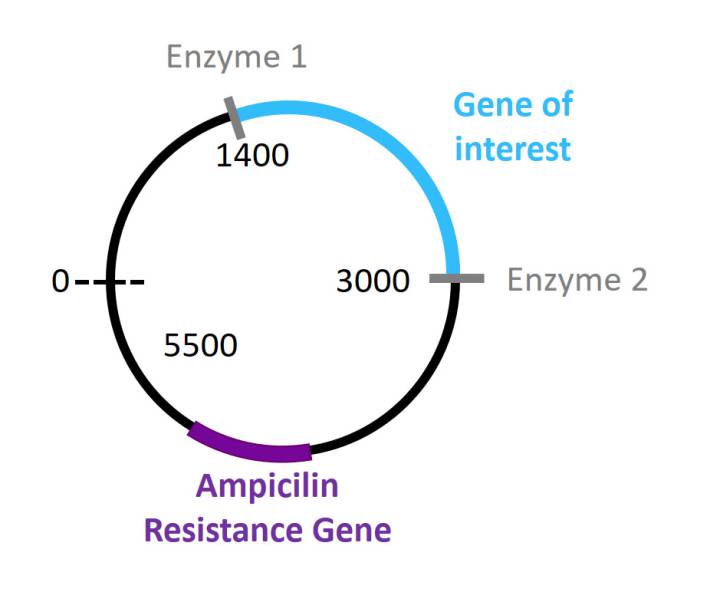

DNA vector 1: p.gene of interest_Amp

Size: 6000bp

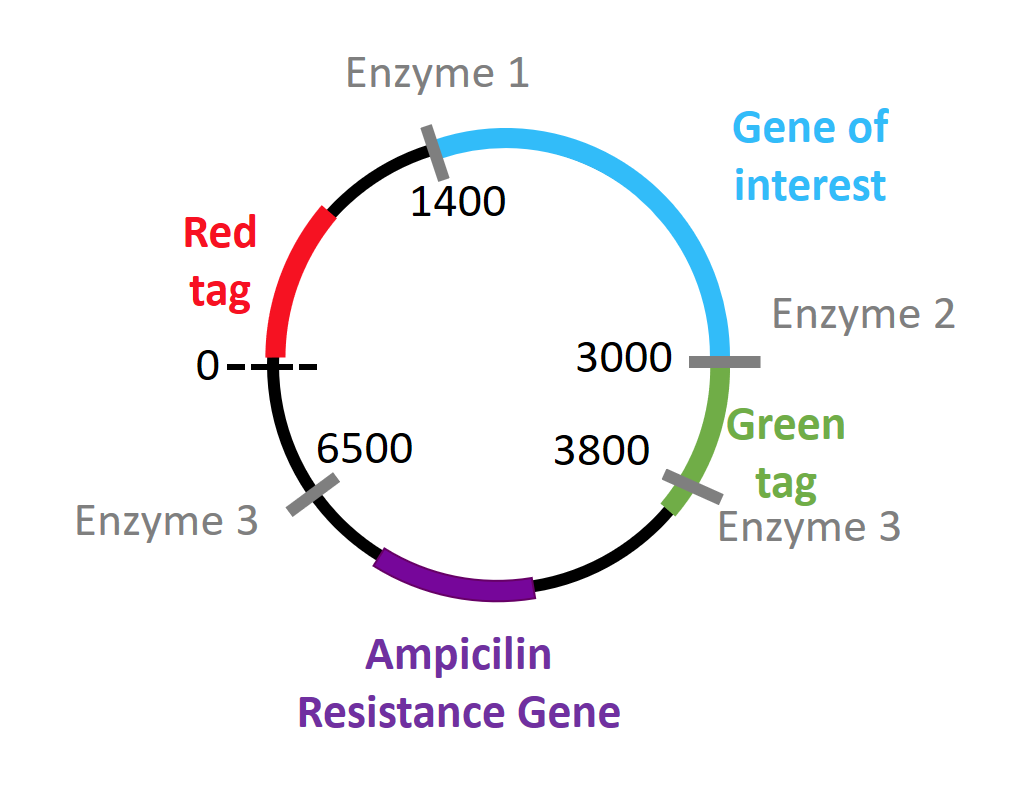

DNA Vector 2: p.gene of interest-GFP_Amp_RFP

Size: 7000bp

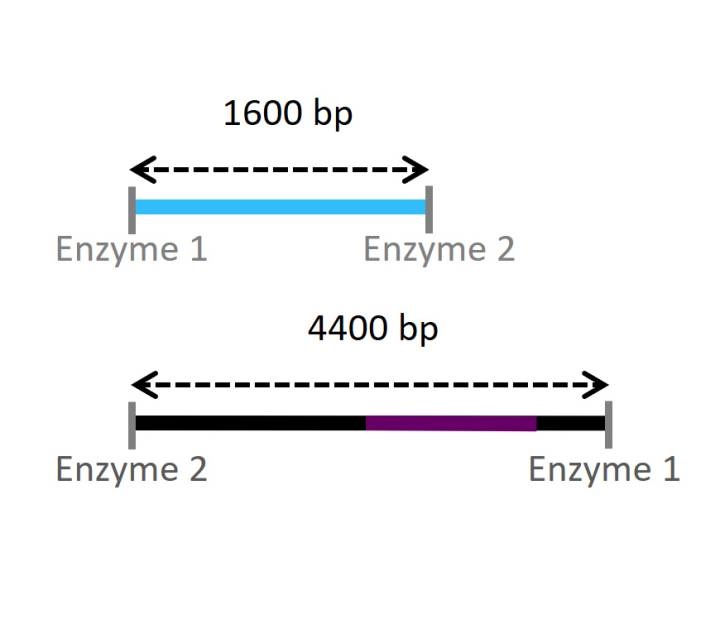

Figure 1: My two DNA vectors. One has the green tag on at the end of the XX gene and the other doesn’t.

That’s what the correct plasmid should look like!

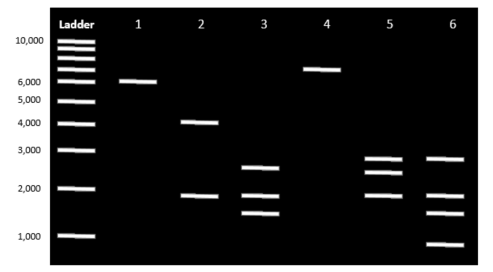

Figure 2: Agarose gel showing fragments of DNA after enzyme digestion from each tube (1-6).

After running multiple reactions to make other vector constructs as well I run a gel after digesting all 6 constructs with enzymes 1-3. Tube contains DNA Vector 2: p.gene of interest-GFP_Amp_RFP. This can now be put in the cells.

Which tube contained the right final vector we wanted (DNA vector 2: p.gene of interest-GFP_Amp_RFP)?
